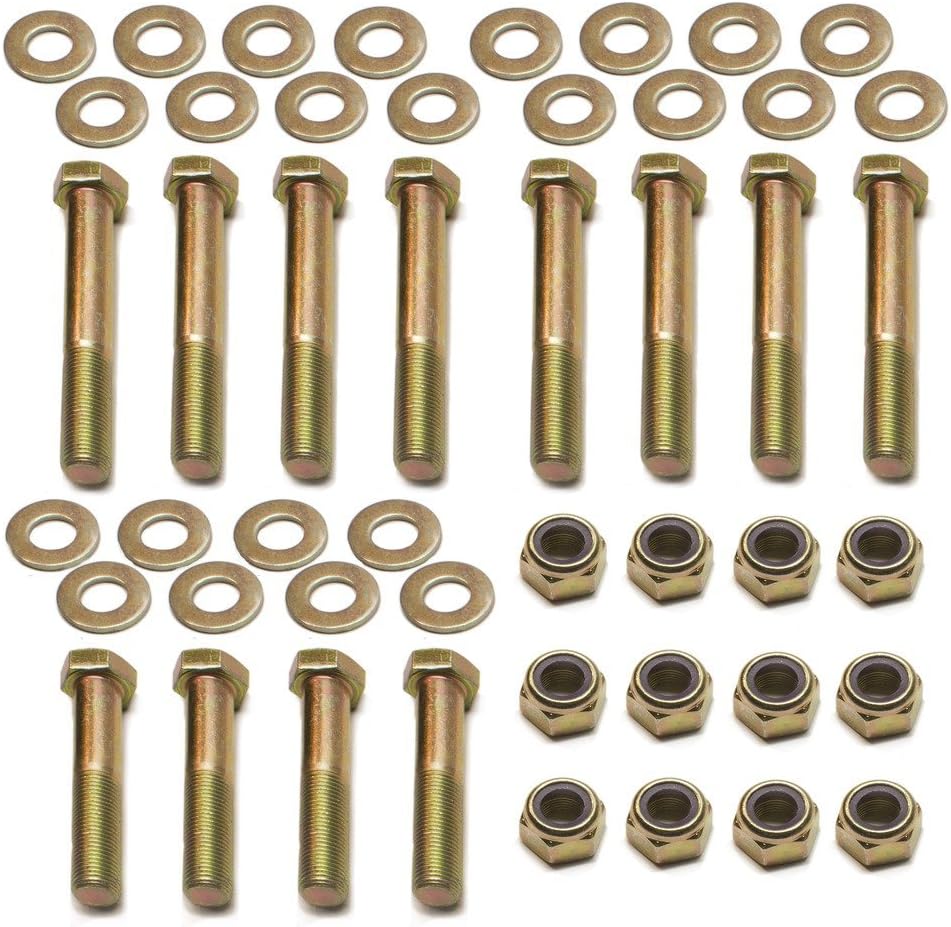

Track Bar and Lower Control Arm Bolt Upgrade Kit for Jeep Wrangler JK + Extra M14 Bolt
Product details
| Management number | 214262092 | Release Date | 2026/04/12 | List Price | $18.00 | Model Number | 214262092 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This must-have upgrade will put your mind at ease. This kit will fix the design flaw caused by the stock bolts.The problem arises because the holes for the tracks bars (TB) and lower control arms (LCA) are 9/16” while the factory bolts are 14mm. This creates a small clearance issue. The other issue is the factory bolts are completely threaded to the head. The threads come into contact with the metal sleeve in the bushing. Both of these factors will cause the bushing sleeve to wear down and become loose over a fairly short period of time causing damage and eventually death wobble. Our upgrade kit provides everything you need to replace the bolts for the Front Track Bar, Rear Track Bar, Front Lower Control Arms and Rear Lower Control Arms. New bolts will match factory 9/16” holes and new bolts have shoulder to prevent threads from coming into contact with bushing. Kit contains high strength Grade 8 hardware. Includes hardened extra thick washers (2 per bolt) that will not deform like standard washers and hex locking nuts. All hardware is yellow zinc to prevent rust. We also include (1) M14 Bolt for the Front Frame Side Track Bar Bracket for newer 2012+ Jeep JKs JKUs.
- Front & Rear Track Bars Bolts and Front & Rear Lower Control Arm Bolts will fix issues caused by stock bolts
- High-strength Grade 8 hardware
- Includes bolts, lock nuts, and washers for installation; Includes extra M14 bolt for 2012+ JKs and JKUs Front Frame Side Track Bar Bracket
- Compatible with Jeep Wrangler JK model years 2007-2018
- Made in U.S.A
| Brand | Ohio Diesel Parts |
|---|---|
| Head Type | Hex |
| Size Name | M14 |
| Unit Count | 1.0 Count |
| Item Weight | 2 Pounds |
| Part Number | JBK-1500X |
| Thread Size | M14 |
| Grade Rating | Grade 8 |
| Manufacturer | Ohio Diesel Parts |
| Thread Style | Right Hand |
| Fastener Type | Hexagon Bolt |
| Item Diameter | 0.55 Inches |
| Item Hardness | Grade 8 |
| Material Type | Alloy Steel |
| Exterior Finish | Yellow Zinc |
| Number of Pieces | 17 |
| Screw Head Style | Hex |
| Manufacturer Grade | heavy-duty |
| Set Screw Thread Type | Metric |
| Maximum Shear Strength | High Grade 8 |
| Compatible Groove Diameter | 1.44 Inches |
